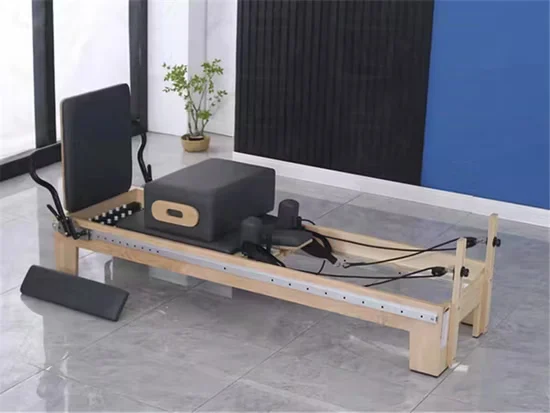

Commercial Foldable Wood Pilates Reformer for Studio Use

Kiln-Dried Stability — Solid hardwood frames dried to 8% moisture content resist warping and delamination across seasonal humidity swings in studio environments.

Technical Specifications

Application Suitability

Why Veneered Frames Fail Before the First Year

Solid hardwood frames kiln-dried to 8% moisture content maintain dimensional stability where veneered composites delaminate.

Studio owners frequently discover that reformers marketed as solid wood are actually veneered particleboard or MDF. Within months of regular use in humid environments, the veneer lifts at stress points near the carriage track and shoulder rests. The commercial foldable wood pilates reformer addresses this by using solid hardwood throughout the frame, with traditional mortise-and-tenon joinery reinforced by surgical-grade hardware that distributes load across the grain rather than relying on adhesive bonds that weaken with temperature cycling. [NEED_CITE: moisture content standards for solid wood furniture stability in climate-controlled environments]

Positioning Within the Studio Equipment Mix

This commercial foldable wood pilates reformer serves as the primary apparatus for supine and prone resistance training across beginner through advanced levels. The foldable design allows studios to reclaim floor space between classes or store units vertically during off-peak hours. It pairs naturally with Cadillac and trapeze table setups for progressive programming, and the long box accessory extends the range of seated and kneeling exercises. The 100kg net weight and 2400mm working length accommodate a broad range of user heights while maintaining carriage stability during dynamic transitions.

Spatial and Environmental Requirements

The 2400×600×350mm working footprint requires a minimum ceiling height clearance of 2200mm for full footbar articulation and accessory attachment. Floor surfaces must be level within 3mm across the reformer length to prevent carriage drift; rubber leveling pads are recommended for concrete or uneven hardwood subfloors. Ambient humidity should remain between 40–60% RH to preserve wood dimensional stability — dehumidifiers are necessary in tropical climates, while humidifiers protect against winter dryness in northern regions. The hand-rubbed natural oil finish tolerates pH-neutral cleaners but requires avoidance of solvent-based disinfectants that strip the surface. [NEED_CITE: indoor humidity ranges for solid wood equipment longevity]

Material and Construction Principles

Solid hardwood selection prioritizes density, grain stability, and tonal consistency across multi-unit orders. Kiln-drying to 8% moisture content minimizes seasonal expansion and contraction — a critical factor for reformer frames where even 2mm of warp compromises carriage track alignment. Traditional mortise-and-tenon joinery at the shoulder rest, footbar, and box attachment points distributes repetitive loading through interlocking wood fibers rather than relying solely on mechanical fasteners. The 48-hour hand-rubbed natural oil finish penetrates the wood surface, providing a non-toxic, food-safe, skin-friendly barrier that remains comfortable during barefoot practice without off-gassing volatile compounds. Spring systems are calibrated for tension consistency across production batches, ensuring that reformers in a group class setting deliver identical resistance at each gear position.

The Hidden Cost of Material Compromises

Veneered frames bonded with interior-grade adhesives begin separating at joint intersections within six to twelve months of daily studio use, particularly near the carriage track where vibration concentrates stress. Moisture content above 12% invites warping that misaligns the carriage rail, causing uneven glide and premature wheel wear. Solvent-based lacquers and polyurethane finishes emit volatile organic compounds that irritate skin during close-contact exercises and degrade under UV exposure, leaving a chalky residue that attracts studio dust. Inconsistent spring tension across a set of reformers forces instructors to constantly adjust choreography, breaking class flow and undermining standardized programming. [NEED_CITE: adhesive failure modes in veneered wood products under cyclic loading]

Why Source From Biketon Life

Every SRY-20B frame is constructed from FSC-certified hardwood kiln-dried to 8% moisture content, verified by batch moisture records provided with shipment documentation. Traditional mortise-and-tenon joinery at all structural intersections is reinforced with surgical-grade stainless steel hardware that resists corrosion from studio humidity and cleaning agents. The 48-hour hand-rubbed natural oil finish is certified non-toxic and food-safe, eliminating skin irritation concerns during barefoot practice. Each unit undergoes 100% load testing with a 32-point inspection before shipment, with records available for client review. Logo customization, wood finish selection, and upholstery color matching ensure multi-unit orders maintain visual cohesion across the studio floor. Full studio design service covers layout planning, equipment mix recommendations, and brand identity integration — including spatial planning for the SRY-20B foldable footprint and adjacent storage configurations.

Documentation & Material Records

• FSC timber certification confirming chain of custody for hardwood sourcing
• Kiln-dried moisture content record verifying 8% MC at time of shipment
• Finish material safety documentation certifying non-toxic, food-safe composition
• 100% load test report documenting carriage and frame performance under rated capacity
• 32-point inspection record covering joinery, hardware, spring tension, and finish quality
• Spring tension specification sheet detailing resistance levels across gear positions
• Assembly and care guide with climate-specific maintenance recommendations
• Spare parts and upholstery replacement list for long-term service planning

Installation, Care & Studio Setup

• Verify floor levelness within 3mm across 2400mm length; use provided rubber pads for adjustment
• Maintain ambient humidity between 40–60% RH to preserve wood stability and prevent carriage track misalignment
• Clean wood surfaces with pH-neutral cleaner only; reapply natural oil finish annually or as needed based on use frequency
• Inspect spring tension quarterly; replace springs in matched sets to maintain consistent resistance across the reformer fleet
• Lubricate carriage wheels and pulley bearings every six months using manufacturer-recommended dry lubricant to preserve silent operation
• Wipe upholstery after each session with disinfectant rated safe for vinyl or leather; avoid bleach-based solutions that degrade stitching

Preparing Your Studio Inquiry

Provide your studio floor plan dimensions, ceiling height, and target equipment count to receive a layout proposal incorporating the SRY-20B foldable footprint and storage configuration. Specify your geographic climate zone so wood moisture content and finish selection can be matched to local humidity conditions. Indicate whether the primary use case is group class, private instruction, or clinical rehabilitation to guide spring resistance configuration and accessory selection. Share brand color preferences for wood finish and upholstery to confirm sample availability and lead time. Wood samples and finish material safety documentation are available upon request for procurement committee review.

Frequently Asked Questions

Q: How can I verify whether a reformer frame is solid hardwood or veneered composite? A: Request FSC timber certification and moisture content records from the manufacturer. Solid hardwood frames show continuous grain patterns across joint intersections and end grain visible at cut surfaces, while veneered composites display repeating surface patterns and exposed particleboard or MDF at attachment points. Cross-section photos of the shoulder rest and footbar mounting areas provide definitive confirmation.

Q: What moisture content range ensures dimensional stability across varying climate conditions? A: Kiln-drying to 8% moisture content minimizes seasonal expansion and contraction in most studio environments. Frames dried to this specification maintain carriage track alignment and joinery integrity when ambient humidity remains between 40–60% RH. In tropical or coastal climates, supplemental dehumidification is recommended; in arid winter conditions, humidification prevents excessive shrinkage and joint loosening.

Q: How does spring tension consistency affect group class programming? A: When reformers in a studio fleet share identical spring tension at each gear position, instructors can design choreography that all participants execute simultaneously without individual resistance adjustments. Inconsistent spring calibration across units forces instructors to modify exercises per reformer, disrupting class flow and undermining standardized progression. Request spring tension specification sheets to verify batch consistency before placing multi-unit orders.

Q: What surface finish certifications apply for barefoot, close-contact practice? A: The hand-rubbed natural oil finish used on this reformer is certified non-toxic and food-safe, eliminating concerns about volatile organic compound off-gassing during heated or extended sessions. The finish penetrates the wood surface rather than forming a film coating, reducing the risk of chipping or peeling that exposes raw wood to sweat and moisture. Request finish material safety documentation to verify compliance with skin-contact safety standards.

Q: How should the wood finish and upholstery be maintained for long-term hygiene and aesthetics? A: Clean wood surfaces with pH-neutral cleaner applied to a soft cloth; avoid saturating the wood or using solvent-based disinfectants that strip the natural oil finish. Reapply manufacturer-recommended oil annually or when the surface appears dry. Wipe upholstery after each session with disinfectant rated safe for the specific material; inspect stitching quarterly for signs of wear. Replace upholstery covers as needed using the spare parts list provided with shipment documentation.
